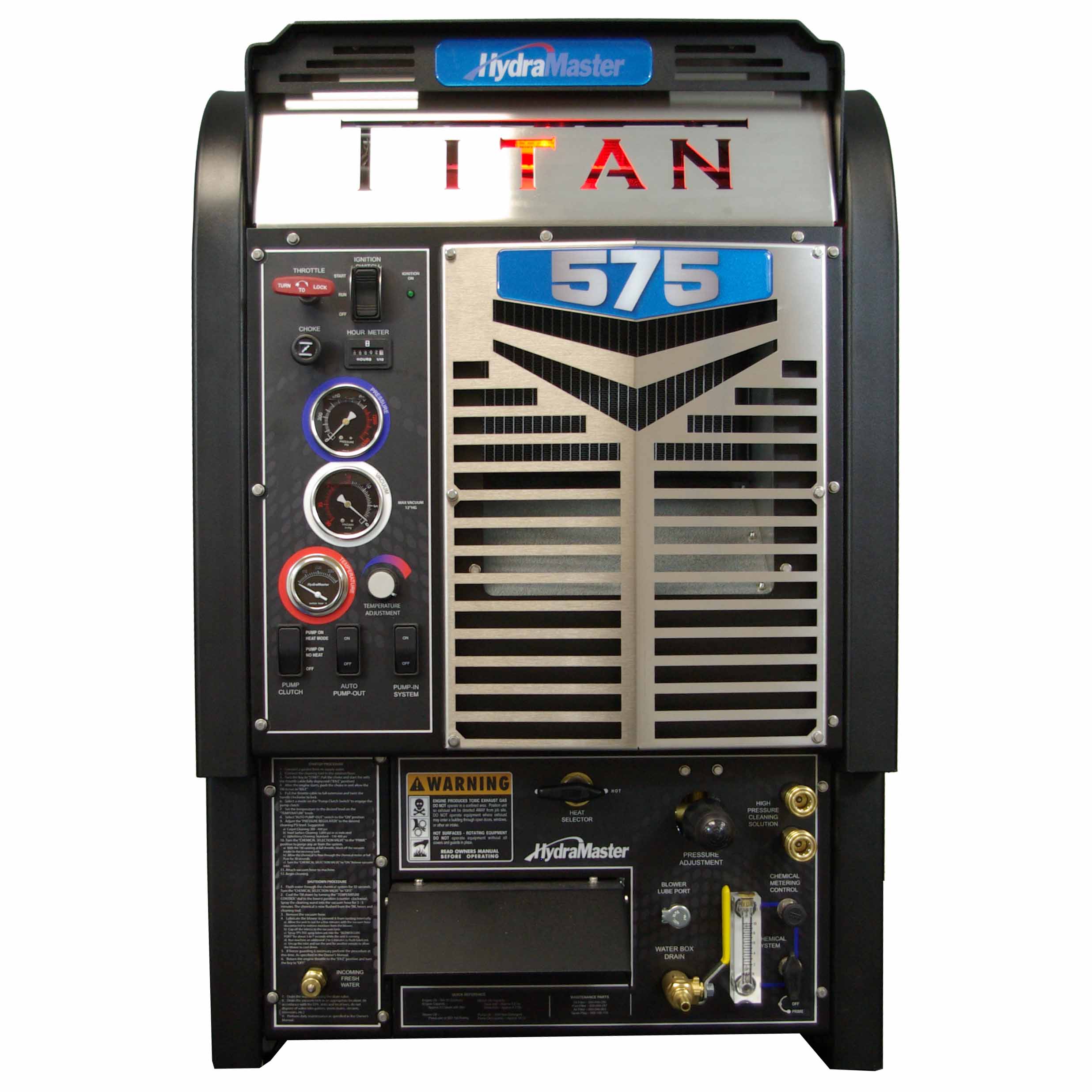

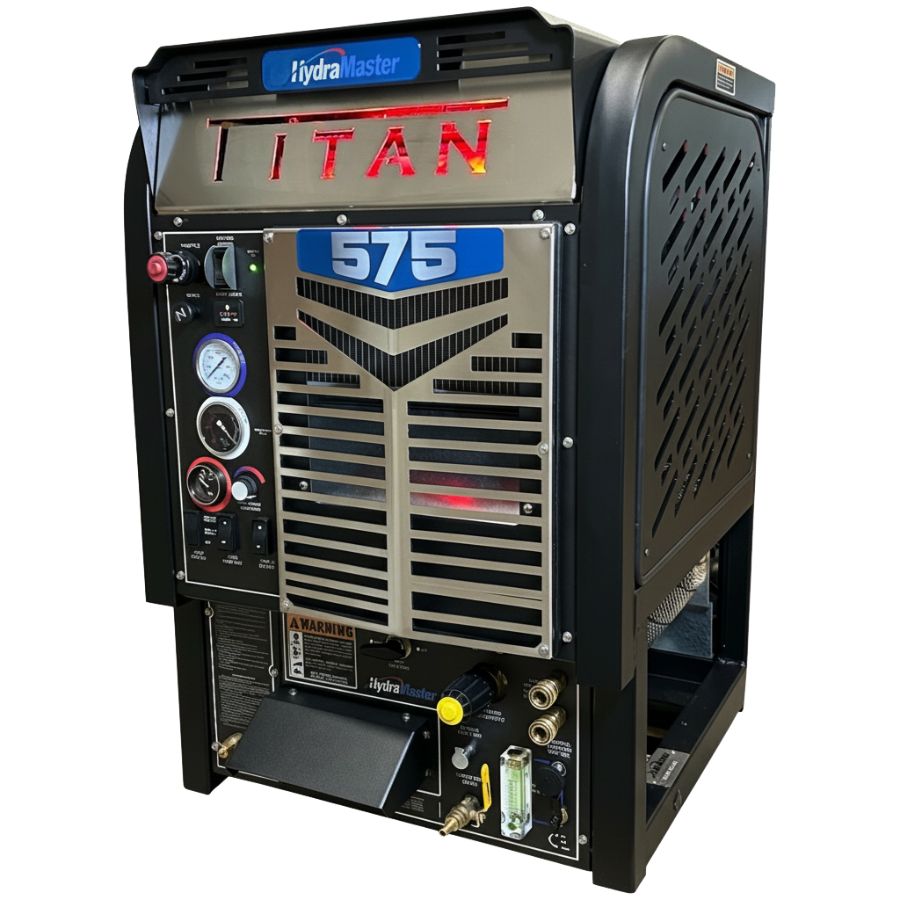

HydraMaster Titan 575 Truck Mount
Item # HM-T575-70 | Mfr. Model # 750-012-753-10
- “Tough as Nails” TITAN quality with a sleek new design
- Engine: WG 972 Kubota 32.5HP liquid cooled
- Vacuum Blower: Competitor™ 4007 Tri-Lobe 400+ cfm, dual oil bath
- 1,200 psi heated, 2,000 psi unheated (with optional kit), electric clutch control
- Max Temp: 265º F
- Comes with Free EZ Maintenance Program!
UNITMANUAL PRODUCTINFO SHEET MAINTENANCE SCHEDULE FREEZEGUARD
Call for customized Package Pricing & Financing 720-374-2375
$34,978.26
Dual Wand Workhorse
Performance in the most challenging environments

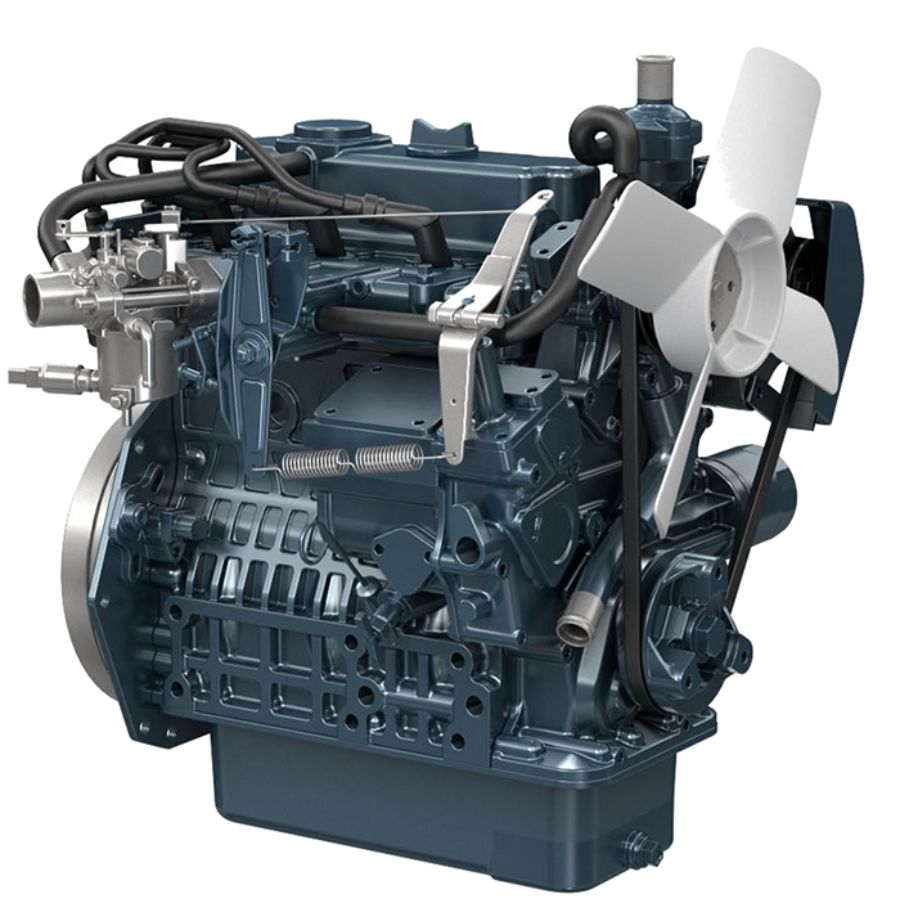

Liquid Cooled Kubota 32.5HP Engine – Delivers Maximum Power and Reliable Longevity.
Uncompromising Cleaning Solution Temperature –
Best in class performance — single wand, dual wand, or hard surface cleaning. Unwavering heat from 230o-250o F.
Vacuum and Water Extraction Recovery – 400+ CFM for Faster Drying, Faster Restoration!
Dual Wand Capable – plumbed and prepared
for you to double your productivity when you
need to!
Patented Heat Control System – ADC Control Diverter manages heat for more consistent temperature delivery and virtually eliminates dumping fresh water during cleaning and water extraction.
Quieter Performance – Opti Air Flow System and dual oil bath helical gear tri-lobe blower reduces noise resulting in the quietest machine in its class.
Simplified Maintenance – “Arms Length” design and removable magnetic panels allow for easy access to crucial components and serviceable parts.
Features
• Kubota® 32.5 HP Liquid Cooled Engine with 3-year manufacturer’s warranty
• Keyless electronic ignition
• Exceptionally rigid cast iron block
• 3 cylinder OHV design
• Fuel-efficient technology, 1.7 GPH at 300 PSI
• Operating at 3000 RPM
• General HTX-1813 High Pressure Pump
• 4.0 GPM volume
• 1,200 PSI heated pressure
• 4007 Dominator™ Tri-Lobe Blower
• HydraMaster exclusive design
• Dual oil bath design with sight level windows
• Durable helical gear drive
• 400+ CFM
• Multi-Stage Thermal Capture and Heat Exchange System
• MAX-TEMP Control
• Cleaning solution temperature of 230-250°F
Specifications
• Subcategory: Slide In
• Dimensions: 26”W x 39”H x 45”D
• Weight: 900 lbs
• Engine: WG 972 Kubota 32.5HP liquid cooled
• Ignition: Electric keyless start
• Vacuum Blower: Competitor™ 4007 Tri-Lobe, HydraMaster exclusive design, 400+ cfm, dual oil bath
• Pump: 4.0 gpm plunger pump, 1,200 psi heated, 2,000 psi unheated (with optional kit), electric clutch control
• Max Temp: 265º F
• Chemical System: Last-step chemical injection, meter controlled
• Heating System: Tube and fin heat exchanger and a shell and with ADC temperature control
• Recovery Tank: 70 gallon MaxAir™ recovery tank; aluminum, baked-on powder coated finish, includes stainless steel filter and filter basket, 36 1/2″L x 10 1/2″W x 31″H, 100 lbs
• Solution Hose Length: 100 ft x 1/4″
• Vacuum Hose Length: 100 ft x 2″
• Wand Capacity: Dual
• Fuel Consumption: 1.6 gph
• Uses: Residental and Large Commercial
Standard Equipment
• Runtime hour meter
• Chemical flow meter (0-10 GPH)
• Chemical flow control valve
• 5 gallon chemical jug
• Vacuum gauge (0-30″ Hg)
• Solution pressure gauge (0-1,500 PSI)
• Solution pressure adjustment
• Pre-wired AWDS Switch
• Fresh water inlet
• Water system drain valve
• Stainless steel carpet cleaning wand
• Diverter valve (with ADC heat control)
• Diverter/clutch package for flood work
• Electrical circuit protection
• Pump clutch switch
• Solution temperature control selector
• Two solution outlets
• Solution Hose Length: 100 ft x 1/4″
• Vacuum Hose Length: 100 ft x 2″
• Wand Whip Line: 10 ft x 1-1/2″
• 50 ft water supply line
• Recovery Tank: 70 gallon MaxxAir™
• Battery box
• Van installation kit
• Operation & maintenance manual
• Embroidered HydraMaster jacket
Options
• 100 Gallon Maxx-Air Recovery Tank Upgrade
• AWDS – Automatic Wastewater Disposal System
• RX20 NEXTGEN Rotary Jet Extraction Wand
• DriMaster 3 Upholstery Tool
• EVOLUTION 2” Wand
• EVOLUTION Stair Wand
• EVOLUTION Flood Extraction Wand
• EVOLUTION GLIDED Upholstery Tool
• EVOLUTION RX12 Rotary Hard Surface Wand
• 70 Gallon Submount Freshwater Tank
• Through Floor Exhaust Kit
• HydraCradle Freshwater Tank/Hose Reel Combo
• 200-300’ Capacity Hose Reels manual and electric
• 2000PSI unheated pressure washing kit
Warranty
2 Year Warranty
