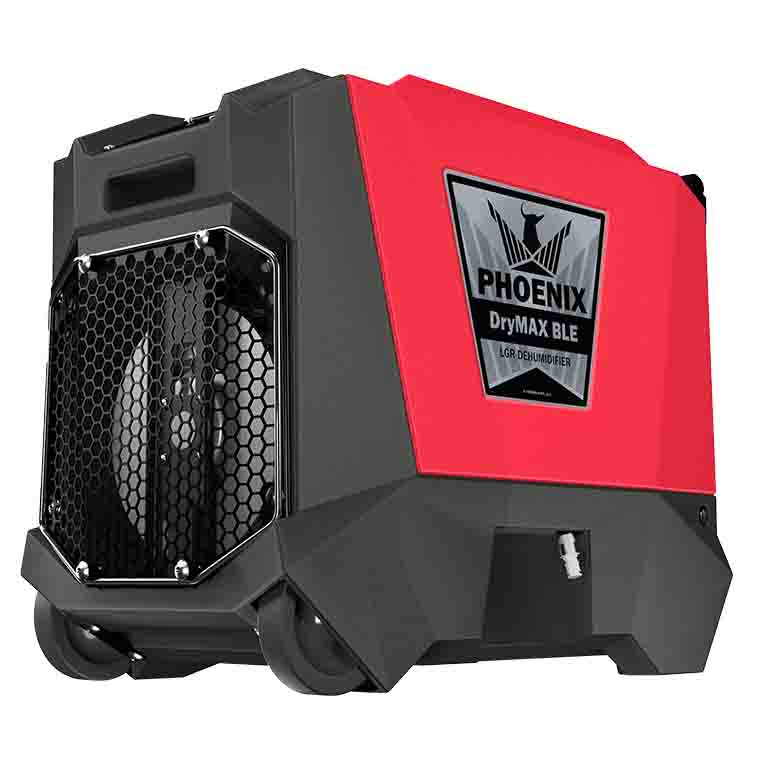

Phoenix DryMAX – LGR Dehumidifier

$2,051.00


  • Ultra compact design
  • 80 PPD at AHAM
  • Onboard storage for 25’ power cord and 33’ condensate hose
  • Slide out handle with wheels for transportation
  • Xactimate Code: WTRDHM>

Item# PH-4036000-EA | Mfr. Model # 4036000   RED


UNITMANUAL PRODUCTINFO SHEET




Customized Restoration Packages Call for Pricing      720-374-2375
Clear

Description

The Phoenix DryMAX is 6% smaller than the closest dehumidifier while still including an integrated handle
and wheels for easy transport. It also includes onboard storage for the power cord and condensate hose.
Remove only four fasteners, and you have easy access to service the unit. The all-new Phoenix microchannel condenser allows us to pack this much performance into such a small dehumidifier. We’ve also
added a new four-line display to the unit, which provides all the information you need to take readings
directly from the home screen, in addition to a status bar at the top of the new control panel to give you
instant feedback from across the room. The stacking of our Phoenix AirMAX worked so well that we took
the same innovative approach to the Phoenix DryMAX. Used together, you have a best-in-class compact,
portable, stackable, rugged drying system.

Additional information

WeightN/A
DimensionsN/A
Color

RED, BLUE

Specifications

PART NUMBERS

4036000 (Red)
4036060 (Blue)

POWER

Current Draw: 5.7 Amps
Voltage: 120 VAC, Grounded

WATER REMOVAL

80 PPD at 80°F/60% RH (AHAM)

CFM

170 CFM without external ducting

FILTER

Pleated 9” x 12” x 1” Media MERV-10

DUCTING OPTIONS

10” lay-flat

DIMENSIONS

OPTION       UNIT              SHIPPING
WIDTH:        12”                  16”
HEIGHT:      17 1/2”           19”
DEPTH:        21”                  35”
WEIGHT:     63 lbs             65 lbs

OPERATING RANGE

33°F to 110°F

REFRIGERANT CHARGE

1 lb, 3 oz. R-410A



Features

• Ultra compact design
• Slide out handle with wheels for transportation
• New four-line control panel with status bar
• Superior stacking
• Micro-channel condenser
• Easy access for service
• 80 PPD at AHAM
• Draws only 5.7 amps
• 170 CFM without external ducting
• Heavy-duty condensate pump
• Pleated 9”x12”x1” MERV-10 Media Air Filter
• Integrated wire duct collar to allow for 10” lay-flat
to be connected to the exhaust
• Onboard storage for 25’ power cord and
• 33’ condensate hose

Accessories | Filters

PH-4024936-EA   Lay-flat Duct 10” Round x 250’ Roll
PH-4037046-EA   9” x 12” x 1” MERV-10 Filter

Warranty

Year 1 – 100% of Parts and Labor
Year 2-5 100% of sealed refrigeration system parts
