Viking PDS-21 Pressurized Wall Cavity Dryer
Item # XP-PDS21 | Mfr. Model # PDS-21
- 9.0 Amps
- Heat to 205°F!
- 2 100’ rolls of tubing for increased drying coverage
- HEATED pressurized air flow for optimal wall cavity drying
- On-Board Plug-Off system improves drying capability with increased pressure
UNITMANUALPartsBreakdownRepairParts
$684.00

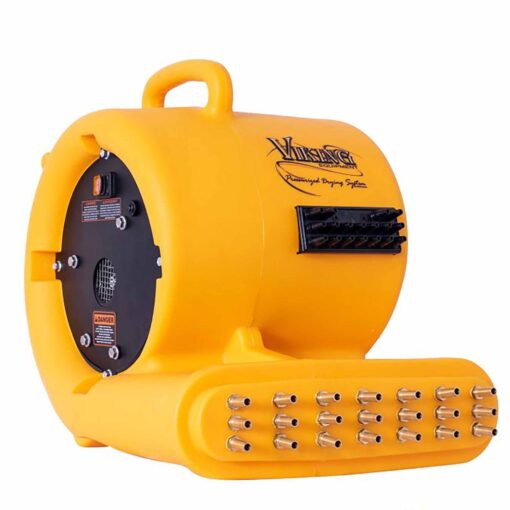

Viking PDS-21
Pressurized Wall Cavity Dryer
Heat to 205°F! The performance proven VIKING PDS-21 is a revolutionary all-in-one containment wall cavity dryer that, for a decade, has carried the restoration industry’s strongest return on investment. There is no air mover motor, no squirrel cage, and no attachments. The PDS-21 Pressurized Drying System quickly delivers dry heated air that is perfect for drying under sinks, behind cabinets and permanent furniture. This portable unit features a lightweight, stackable design that includes a built-in cord wrap. The frustration free PDS-21 is easy-to-use on big and small jobs alike. It makes drying a breeze!
Specifications
| MOTOR | 2-Stage Tangential By-Pass |
|---|---|
| VOLTS / CYCLE | 115 V |
| AMP | 9.0 A |
| RATED AIRFLOW | 92 CFM |
| SPEEDS | 1 |
| CORD LENGTH | 25 ft |
| STACKABLE | Yes |
| TUBING | 3/8 id 1/2 od Black (200 Ft.) |
| OPERATING TEMPERATURE | Up to 205F |
| UNIT WEIGHT (LBS) | 19 LB |
| UNIT DIMENSIONS (L X W X H) | 20.5" x 16.7" x 18.5" |
| BOX WEIGHT (LBS) | 35.6 LB |
| BOX DIMENSIONS (L X W X H) | 21" x 19" x 22" |
| HOUSING | Roto Molded Polyethylene |
| SAFETY CERTIFICATIONS | UL Approved Motor |
| THERMAL PROTECTION | Thermal Protection Switch + Auto Reset |
| UPC | 848025012529 |
